General Rod Extruder

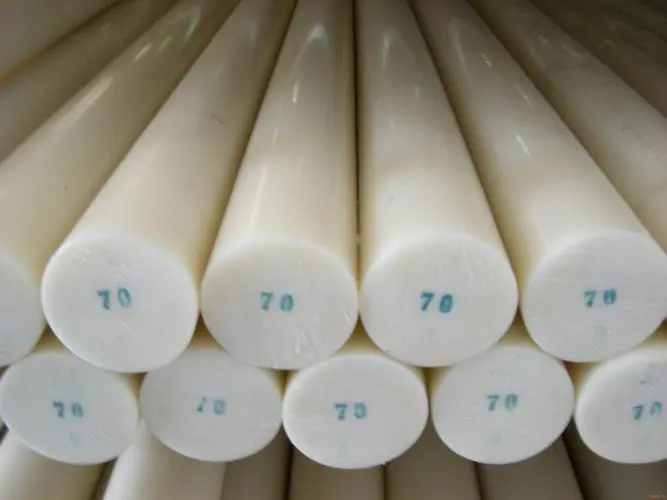

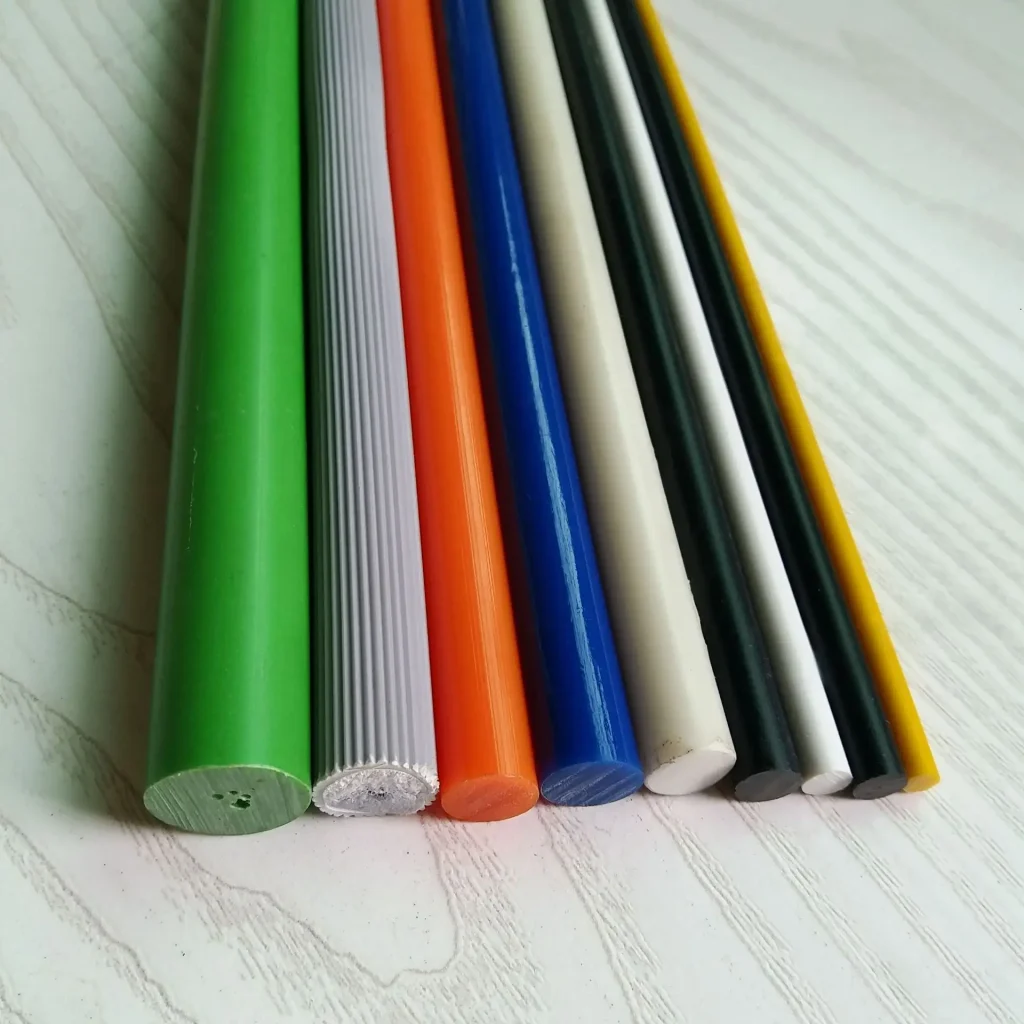

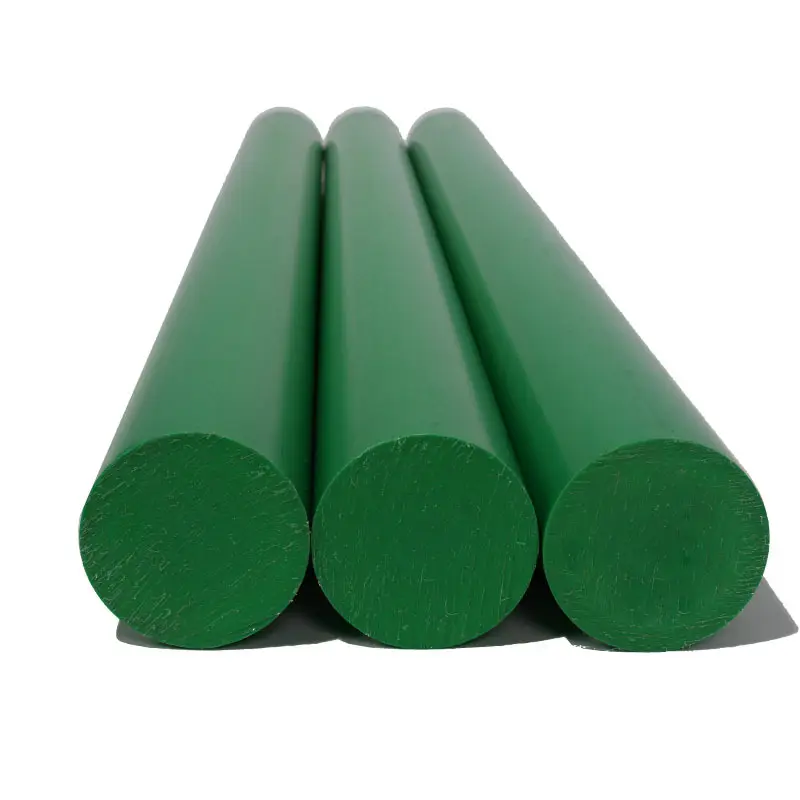

This General Rod Extruder (Model: HPJX-RE-01) is a device designed for producing various plastic bars, compatible with raw materials such as PVC, PE, PP, ABS, and more. By heating and plasticizing raw materials, combined with precise control of the screw and die head, it produces bars of different diameters and lengths. The equipment features high efficiency, precision, and automated control, making it widely applicable in daily life, industrial production, electronics, and other fields to meet high-quality requirements for plastic bars. With advantages like strong stability, low energy consumption, and minimal maintenance costs, it is a critical device in the plastic processing industry.
Classification:
Production Process
Production Process
Production Line Composition
Extruder
Cooling System
Pulling System
Storage System
Product Introduction
Technical Background
The technology of the Generoa Rod Extruder originates from the plastic processing industry’s demand for high-performance and precision equipment. With the widespread application of plastic materials across sectors—especially in construction, automotive, electronics, and healthcare—the need for standardized plastic bars has surged. Traditional production methods could not meet requirements for mass production and high-precision forming, leading to the development of the Universal Bar Extruder as a key solution for enhancing efficiency and ensuring product quality.
Advancements in extrusion technology have driven significant progress in raw material handling, temperature control systems, screw design, and die head technology. Modern extruders ensure bar uniformity and quality through precise plasticization control. Additionally, automated control systems enable intelligent production, reducing manual intervention and errors while boosting efficiency.
The extruder’s adaptability to diverse raw materials (PVC, PE, PP, ABS, etc.) addresses industry-specific needs. Through continuous optimization, it plays a vital role in improving productivity, reducing energy consumption, and extending equipment lifespan, thereby driving sustainable development in the plastic processing sector.
Structural Components
Extruder:
- Screw and Barrel: The screw is responsible for plasticizing and extruding plastic raw materials. The barrel is usually made of high – temperature – resistant materials to withstand high – temperature and high – pressure environments.
- Motor: Drives the screw to rotate and provides the required power.
- Heating Device: Multi – stage heaters provide the required temperature control to ensure effective plasticization of plastics.
- Mold: A mold customized according to the pipe specifications is responsible for shaping the molten plastic into a pipe. The mold design affects the diameter and wall thickness of the pipe.
Product Parameters
| Parameter | Value |
| Extruder Model | HPJX-RE-01 |
| Compatible Materials | PVC, PE, PP, PS, PET |
| Bar Diameter Range | 6mm – 80mm |
| Max. Output | 150 kg/h / 250 kg/h / 400 kg/h |
| Screw Diameter | 50mm / 75mm / 90mm |
| Screw L/D Ratio | 25:1 |
| Motor Power | 22 kW / 37 kW / 55 kW |
| Temperature Zones | 4-6 zones |
| Max. Line Speed | 10-25 m/min |
| Power Supply | 380V / 50Hz, Three-phase (Customizable) |
Product Features
High - Efficiency and Energy - Saving
Adopting advanced screw designs and optimized heating systems ensures rapid plasticization of raw materials, improves production efficiency, significantly reduces energy consumption, and supports green production.
Precise Temperature Control
The multi – zone temperature control system ensures stable temperature in each processing step, avoiding performance degradation of raw materials due to overheating or over – cooling, ensuring consistent pipe quality, and meeting the quality requirements of different customers.
Automated Operation
The equipment is equipped with a fully automatic PLC control system, which is easy to operate, monitors various production parameters in real – time, reduces human errors, and enables an efficient and stable production process.
Flexible Mold Configuration
It provides molds of various specifications and supports multi – layer co – extrusion technology, which can meet the requirements for pipes of different diameters, wall thicknesses, and layers, and easily handle customers’ personalized orders.
Application Fields
In 2023, the annual sales volume of our universal pipe extruders reached 10 units.
Hope Machinery has been deeply involved in the plastic extruder industry for many years, accumulating rich experience and professional knowledge, and has become a trustworthy partner for customers.
Through customer surveys, our customer satisfaction rate is as high as 95%, indicating the superiority of our products and services.
In the local pipe extruder market, our market share reaches 15%, showing strong competitiveness.
